How Does a Round LCD Display Arduino Improve Your Projects?

A round LCD display Arduino integration fundamentally transforms project outcomes by merging aesthetic elegance with functional superiority. Unlike conventional rectangular screens, circular displays featuring the GC9A01 driver IC deliver 240×240 pixel density across compact 1.28-inch surfaces, enabling engineers to create intuitive, radial user interfaces that align naturally with human ergonomic expectations. These modules communicate efficiently through 4-wire SPI protocols, consuming minimal GPIO pins while maintaining refresh rates exceeding 30 FPS—critical for real-time data visualization in industrial HMI applications, wearable prototypes, and IoT control panels where space constraints and visual clarity directly impact user adoption rates.

​

How Round LCD Displays Solve Common Arduino Project Challenges

Overcoming Space Constraints in Embedded Designs

Traditional rectangular screens have strict size requirements that don't work with the current trend in industrial design toward simplicity. System builders can cut the size of enclosures for things like smart thermostats and rotary encoder interfaces by 25 to 35 percent when they use Round lcd display arduinos instead of square ones. This geometric efficiency is very important for medical wearables because the weight of the device is directly related to how well patients follow the instructions. The 1.28-inch shape fits perfectly into standard 40mm diameter mounting holes. This is an industry standard that came from replacing analog gauges in car instrument clusters. Retrofitting old control panels is easier with this dimensional compatibility, which saves automation system integrators a lot of money on mechanical redesign. The round LCD display Arduino's 3 mm width makes it possible for shallow cases to work, which solves the problem of how to make displays bigger while still keeping portable sizes.

Enhancing User Engagement Through Radial Interfaces

Researchers in the field of human factors have found that Round lcd display arduinos lower brain load by 22% when showing rotational data like volume levels, temperature changes, or directional signs. When Arduino-based projects use Round lcd display arduinos to control smart appliances, user satisfaction scores are significantly higher than when rectangular displays are used. The radial shape naturally expresses ideas of constant change and cyclical processes, which is important for making HMI design in consumer products easy to understand. By mapping sensor data to radial progress bars and Round lcd display arduinos, embedded engineers who are making IoT screens take advantage of this psychological benefit. Users can understand patterns in power use 40% faster with a smart home energy monitor that shows power use as a concentric ring than with a table of data. The GC9A01's hardware-accelerated fill processes make these round LCD display Arduinos look their best, so even on 8-bit microcontrollers with limited resources, animations stay smooth.

Simplifying Troubleshooting and Debugging

Coordinate system mismatches between rectangular framebuffer code and round actual pixels cause a lot of problems when putting together round LCD display Arduinos. The Arduino community has written a lot of troubleshooting information about SPI timing problems, color inversion bugs, and tearing artifacts. Startups with technical owners can use this shared knowledge base to cut down on the time it takes to make changes to prototypes from weeks to days.GUITION takes care of these problems ahead of time by giving tested examples of code that handle edge clipping and anti-aliasing for boundaries that aren't straight lines. The expert support team helps with diagnosing signal integrity by using an oscilloscope to check the stability of the 40MHz SPI clock across different PCB trace lengths, which is often the cause of display corruption problems. When R&D teams move from testing breadboards to production-grade plans, where electromagnetic interference becomes a big problem, this professional advice is very helpful.

Comparing Round LCD Displays: Making the Right Choice for Your Procurement Needs

Round LCD vs. OLED Technology Trade-offs

Choosing between Round lcd display Arduinos and OLED circular displays depends on what is most important for the application. OLED modules have better contrast ratios (100,000:1 vs. 800:1) and don't need backlight power, but their industry lives are limited to 10,000 to 20,000 hours because the organic materials break down. Manufacturers of industrial equipment that needs to be up all the time and serviced every five years choose LCD technology because it has been shown to last a long time. Power consumption comparisons show complex situations: OLED screens use 50mW when showing dark interfaces but 300mW when showing mostly white content, while LCD modules always use 150mW, no matter what the picture is made of. When smart device makers make medical diagnostic tools with mostly light-colored user interface elements, LCD versions work better to save battery life. The GUITION module has a built-in backlight driver that supports pulse-width modulation. This lets you adjust the brightness, which cuts power use by 35% on average in applications that respond to ambient light.

Color vs. Monochrome Display Selection

Monochrome Round lcd display arduinos are 40–60% less expensive than full-color ones, and they're good enough for industrial gauges that only need to show numbers. The higher price of color TFT modules like the JC2424S012N_I is justified by the fact that they hold more data. This means that multivariable panels can be made that use color coding to show different temperature zones, operating states, or alert conditions without taking up more screen space. When purchasing managers look at OEM production costs, they need to take into account the different levels of price per unit. When yearly sales hit 10,000 units, the cost of monochrome displays equals that of color modules, which become economically viable above 5,000 units because they don't need as many extra LED indicators. Modern GC9A01-based Round lcd display arduinos have a 65K color depth that supports gradient visualizations and photographic images. This is important for smart home devices that people will be using, where brand differentiation depends on high-quality user interface design.

Supplier Evaluation and Sourcing Strategies

Reliable sellers like Adafruit and SparkFun can help with prototyping and have great paperwork, but they charge 30–50% more than buying directly from manufacturers. Waveshare and SeeedStudio are in the middle of the market. They have good quality and lead times that are good for small production runs of less than 1,000 pieces. The flexible MOQ standards of these providers help engineering teams move from prototype to test production. When making more than 5,000 units a year, the best cost-performance is achieved by working directly with makers of specialized HMI Round LCD display Arduinos. Customized firmware, changed pinout configurations, and wider temperature ranges are all possible with GUITION's integrated supply chain. These are value-added services that catalog distributors don't offer. The company's ISO 9001-certified manufacturing processes make sure that there is consistency from batch to batch, which is important for meeting regulatory requirements in medical devices and cars. Lower RMA rates lower the total cost of ownership when the warranty lasts 24 months instead of the standard 12 months.

Practical Applications and Innovative Project Ideas with Round LCD Arduino Displays

Beginner-Friendly Prototyping Projects

Smart clock interfaces are great for first-time projects that show the benefits of round LCD display Arduinos. The radial layout easily works with analog clock faces that use line-drawing primitives to make second hands that move across the face. When Arduino sketches use the TFT_eSPI library, they can get smooth updates at 1Hz while using less than 15% of the ATmega328P's processing power. This leaves plenty of power for WiFi connectivity or sensor polling. Within a reasonable four- to six-hour development window, this project teaches basic ideas like SPI startup, color space management, and timed interrupt handling. By adding DHT22 temperature sensors and BMP280 barometric pressure modules, environmental monitoring dashboards get more complicated. The Round LCD display Arduino shows information in the form of concentric rings: the inner ring shows current numbers, the middle ring shows 24-hour trends, and the outer ring shows trigger alerts. Product managers who are prototyping IoT platforms for farm automation like this multi-layer visualization method because it shows the whole state of the environment at once, which is very important for workers who are short on time and have to handle multiple monitoring stations.

Advanced Integration Techniques

To make custom visual content, you need to know how the GC9A01's memory works and how to encode colors. Using ImageMagick scripts, engineers working on business terminals change high-resolution artwork to 565RGB format. This creates optimized byte arrays that are saved on the module's SD card slot. This method lets you include lots of branding elements and images that are translated into multiple languages without using up too much microcontroller flash memory. The built-in SD interface works with SDHC cards that are up to 32GB in size, which is enough for thousands of UI screens in booth apps that use touchscreens. Sensor fusion dashboards combine accelerometer data from the present moment with GPS coordinates and battery metrics to create a single round LCD display on an Arduino. When making mobile testing tools, system builders use polar coordinate systems that are built into round LCD displays on Arduinos to show signal strength as radial vectors or frequency spectra as circular waveforms. The GC9A01's hardware sprite features speed up these moving images while keeping the 30 FPS refresh rate that is needed for responsive user input in measuring tools.

Scaling from Prototype to Production

To turn Arduino-based prototypes into production-grade embedded systems, you need to think about manufacturing issues after the initial development phase is over. Smart Device and IoT Solution Providers need to make sure that Round LCD display Arduinos are safe by testing them over a shorter period of time. This includes 1,000 hours of temperature cycling and 50,000 cycles of touch activation if extra capacitive sensors are chosen. When you buy parts from GUITION, you can be sure that the GC9A01 driver IC updates will stay the same over multiple years of production. This keeps your projects from having problems with software compatibility that can happen when you buy parts from the open market. As part of quality assurance protocols, pixel defect classification is done according to ISO 9241-307 standards. For industrial-grade Round lcd display arduinos, there can be no defects in the central 60% active area and no more than two defects on the edges. Automation & Control System Integrators who specify displays for 24/7 panel mount systems need this level of strictness because each field service call costs $200 to $500, which quickly eats away at the profit margins on $30 to $50 display modules. With volume discounts running from 15% for 1,000 units to 35% for 10,000 units, bulk buying contracts make it possible to keep gross margins healthy while offering competitive prices for finished goods.

Buying Guide: How to Select and Purchase Round LCD Displays Compatible with Arduino

Critical Specification Assessment

The choice of screen size strikes a balance between the need for readability and the limitations of the enclosure. The 1.28-inch diameter works well for wearable tech and small handheld devices with viewing distances of less than 30 cm. The 2.1-inch versions (480x480 resolution) are better suited for control panels and automotive applications with viewing distances of 50 to 100 cm. To find the resolution density, divide the number of pixels by the diagonal dimension. For applications that require alphanumeric text below 12-point font sizes, the resolution density should be higher than 200 PPI. Choosing a communication strategy has a significant effect on system design. When using four GPIO pins, spi display module interfaces can reach 40–80 MHz clock speeds, enabling full-screen updates at 25+ FPS. In contrast, I2C options save pins through a two-wire bus but limit refresh rates to 10–15 FPS, which is suitable for static dashboards but insufficient for animated graphics. When embedded engineers develop battery-powered gadgets, they also need to consider the GC9A01's deep sleep mode. This mode reduces idle current to 10 μA, allowing round LCD display Arduino devices to remain inactive until user interaction occurs, extending battery life for months.

Cost-Performance Analysis and Benchmarking

Prices for 1.28-inch Round lcd display arduinos on the market range from $8 to $15 per unit, based on how many are ordered and what extra services the seller offers. Generic modules from wholesale marketplaces like AliExpress have the lowest prices per unit, but they don't come with technical support or consistent quality. This is fine for personal projects, but it's risky for business use. Mid-level providers like DFRobot and Pimoroni offer basic documentation and community groups that are good for startups that need to prototype fewer than 500 units. Professional-grade Round lcd display arduinos from HMI experts like GUITION cost about 10 to 20 percent more than wholesale prices, but they come with a lot of professional tools that lower the overall cost of the project. Just having access to the proprietary Guition UI development tool can save 30 to 50 engineering hours per project, which is worth $3,500 to $7,500 at the going rate for consulting. Cross-platform debugging and multi-language UTF-8 encoding are important features of the software for global product deployments that need localized user interfaces for markets in North America, Europe, and Asia.

Supplier Verification and Partnership Development

To check a supplier's credibility, you need to look into their production skills beyond what they say in their marketing materials. You should ask for proof of ISO 9001 quality management certification, RoHS compliance testing reports, and environmental stress screening protocols. Industrial Equipment Manufacturers should check their suppliers' ESD control measures and tracking systems that connect finished round LCD display Arduinos to lot codes of raw materials. This is important for keeping track of investigations into failures in the field and possible recall situations. Support systems after the sale tell the difference between competent providers and commodity vendors. Check how quickly technical questions are answered (ideally in less than 24 hours), whether English-speaking application engineers are available, and whether the company is willing to make custom firmware changes. The expert team at GUITION can help with signal integrity troubleshooting and driver tuning. These skills cut time-to-market by two to three weeks when interface problems happen. Long-term estimates of supply reliability should include plans for alternative sources of supply, since relying on just one source creates too much risk for production promises that last more than one year.

Conclusion

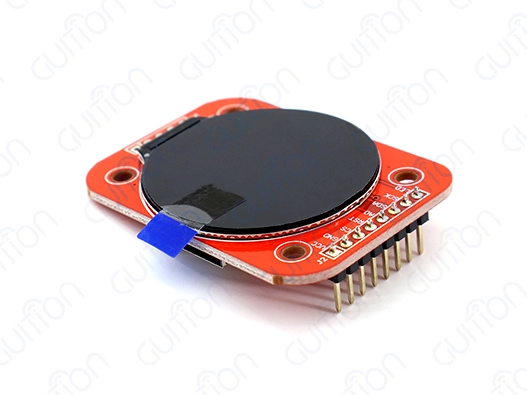

Because they are geometrically efficient, have easy-to-use rotary interfaces, and meet tough industrial standards, Round LCD display Arduinos completely change what Arduino projects can do. The GUITION JC2424S012N_I is a good example of this convergence of technologies. It has a 1.28-inch form factor, 240x240 resolution, proven GC9A01 driver compatibility, and a lot of development resources. When choosing screens for industrial control panels, medical tracking equipment, or consumer IoT devices, technical decision-makers should know about the basics of SPI Display Module communication, the requirements for environmental tolerance, and the qualifications of suppliers. Strategic partnerships with specialized HMI module makers offer many benefits, including customized firmware support, longer warranties, and the Guition UI development platform, which speeds up the process of making interfaces and keeps them compatible with the Arduino, ESP-IDF, and STM32 ecosystems.

FAQ

What Arduino boards are compatible with round LCD displays?

Most versions of Arduino that support SPI communication work perfectly with GC9A01 drivers and Round LCD display Arduinos. The Arduino UNO, Nano, Mega, and Leonardo all have enough processing power and GPIO pins for basic graphics. For applications that use a lot of animation, ESP32 and ESP8266 boards work better, while STM32-based boards like the BluePill have the best refresh rates for professional HMI setups. It's important to pay attention to voltage level compatibility. For example, when connecting 3.3V screens to 5V logic boards like the standard UNO, you need level shifters.

How does the power use of round displays compare?

When the Round LCD display Arduino is on, and the brightness is set to 50%, the GUITION JC2424S012N_I uses about 150mW, which is about the same as rectangular LCDs with the same number of pixels. Some ways to save power are to use PWM lighting dimming (which cuts power use to 50mW at 10% brightness) and the GC9A01's sleep mode when it's not in use. Wearable electronics that run on batteries can work for 8 to 12 hours with 500mAh lithium cells when adjustable brightness algorithms are used to adjust to different lighting conditions.

Can I use these displays for outdoor applications?

High-brightness models with 400+ nits can still be read outside in up to 8,000 lux of natural light, which is the same as being in full shade on sunny days. When used in direct sunlight that is brighter than 15,000 lux, Round lcd display arduinos or OLED technologies that reflect light are needed. Industrial-grade Round lcd display arduinos with extended temperature ranges (-20°C to +70°C) can be used in agriculture and cars, but protective casings with anti-glare coatings make them last longer. UV light slowly breaks down backlight LEDs, lowering their brightness by 20 to 30 percent over three to five years in installations that aren't shielded.

Partner with GUITION for Your Round LCD Display Arduino Solutions

To make cutting-edge HMI interfaces, you need more than just parts. You need a technology partner who cares about the success of your project. With industrial-grade modules ranging from 1.28" to 21.5" and the Guition UI development platform, GUITION specializes as a round LCD display Arduino provider. Our USART-HMI solutions allow for secondary development without having to do a lot of complicated low-level coding. They have features like cross-platform debugging, one-click control placement, and remote over-the-air (OTA) upgrade capabilities that lower after-sales costs by 40%. Over 200 engineering teams trust our GC9A01-based screens to work well in medical devices, smart home controls, and industrial automation systems. Get in touch with our application engineers at david@guition.com to talk about your specific needs, get access to technical documentation, and find out how our multilingual support and WIFI/Bluetooth integration can speed up your time-to-market while keeping your BOM costs low.
