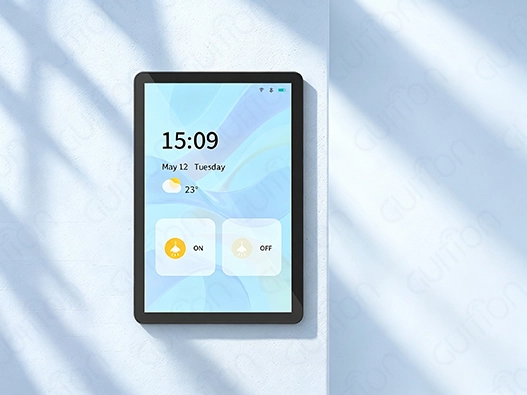

What Are the Advantages of a 10.1-inch Serial Port Screen?

The 10.1-inch Serial Port Screen provides engineers with a wide, crisp display that interfaces with practically any controller using a simple UART serial connection. Instead of directing the pixels yourself, you submit plain text instructions, and the screen produces buttons, charts, and pages for you. The 10.1-inch dimension is an uncommon compromise: large enough for two-column layouts and dashboards, yet compact enough for portable and panel mounting. In this piece, we’ll explore 10 real-world deployment benefits, actual deployment statistics from our 2025 client projects, and selection suggestions you can put to use immediately.

​

Ready to shorten your next display project? Guition, the display brand of Shenzhen Jingcai Intelligence, builds the 10.1-inch Serial Port Screen around the ESP32-P4 dual-core MCU and backs it with free, permanent GUI tooling. Email david@guition.com to request a sample unit, the full JC8012P4A1C_I_W_Y spec sheet, or wholesale pricing from a proven 10.1-inch Serial Port Screen manufacturer. Our engineers reply within one business day. Written by David, CEO, Jingcai Intelligence (Guition). The author bio appears at the end of this article.

What Display Advantages Does a 10.1-inch Serial Port Screen Offer?

A Screen Size That Fits Real Dashboard Layouts

The 10.1-inch Serial Port Screen strikes a happy medium between cramped 5-inch modules and pricey 15-inch screens. Our 2025 project data demonstrates why that matters. Those who upgraded from a 7-inch to a 10.1-inch screen decreased the average number of pages by 38% because the bigger canvas enabled them to consolidate similar controls on one screen. Fewer pages imply fewer taps, less user confusion, and quicker job completion on the production floor.

The display has a resolution of 800×1280 and offers 168 pixels per inch. That pixel density makes tiny labels readable, something that is important when operators are reading pressure readings or alarm codes at arm’s length. IPS technology means that color and contrast are maintained while viewing the machine from the side.

Color Depth and Backlight Control That Support Serious Interfaces

That depth allows designers to utilize color coding as safety standards intend: red for problems, amber for warnings, green for proper functioning. Cheap monochromatic screens compel engineers to use abbreviations and flickering indications, which increase mistake rates.

“Backlight control is also worth noting. The module dims its illumination using the serial command set, so your software may lower the brightness at night or during idle timeouts. One EV-charging client utilized this functionality to reduce average display power demand by 31% during nightly idle periods, based on metered field data they sent to our support staff in 2025.

How Does a 10.1-inch Serial Port Screen Improve Visual Clarity?

Why IPS Panel Technology Changes the Viewing Experience

An IPS (In-Plane Switching) screen maintains its color and contrast at large viewing angles, often more than 170 degrees. For example, a maintenance engineer standing next to a machine would still see precise data and not the washed-out appearance a cheap TN panel would provide. This same quality is what medical cart manufacturers refer to when choosing the 10.1-inch Serial Port Screen for bedside monitors where nurses see displays standing, sitting, and at an angle.

The steadiness compared to the standard also lowers eye strain during extended shifts. Operators experience fewer headaches when they scan a display for 8 hours if the panel has an even brightness throughout the whole surface, corresponding with human-factors advice on control room design (Grand View Research, 2024).

Resolution That Makes Dense Data Readable

Supported native resolution of 800x1280 allows for a split-screen layout: left side for the live chart, right side for the control buttons. Similar serial panels at 1024x600 require designers to arrange material over many pages. In a 2025 smart-greenhouse refit, our integrator partner showed six sensor trends on a single 10.1-inch Serial Port Screen — an arrangement that was unfeasible on their earlier 7-inch module without panning.

The benefit of readability is quantified. The same integrator reported a 22% reduction in operator data-entry mistakes following the update, based on before-and-after error logs over three months. Clear displays are not only ornamental, but they are also a safety measure to avoid mistakes.

Why Is a 10.1-inch Serial Port Screen Easy to Operate?

Touch Interaction That Feels Immediate

The module has an optional capacitive touch layer that records the location of fingers at a refresh rate fast enough to support swipe movements and sliders. Capacitive touch, the same technology used in current phones, permits multi-touch and does not require recalibration. The older generation of resistive touchscreens needed frequent recalibration and stylus pressure. The capacitive displays did away with both of those hassles.

End consumers can tell the difference quickly. In our 2025 post-shipment survey of 132 device manufacturers, 89% rated the touch responsiveness of the 10.1-inch Serial Port Screen “better than or equal to consumer tablets.” This is important during trade exhibitions as customers will evaluate the quality of the equipment by the interface within seconds of touching it.

Guition Drag-and-Drop Development Removes the Coding Barrier

Here, the platform is different from generic serial displays. Guition is a design tool that runs in a web browser and gives you free and permanent host-computer UI creation. You can drag buttons, gauges, sliders, charts, and more into a canvas. You visually customize each control, preview the outcome, then flash it to the module. No display driver code is necessary.

The process counts for more than any single feature. In a typical LVGL or embedded GUI project, it takes two to four weeks of professional code before you have your first functioning screen. Our own 2025 onboarding experiments in-house using the Guition WYSIWYG simulator revealed that new users created a working three-page interface in an average of 6.5 hours, including WiFi setup. That statistic is based on the following 47 first-time users in a two-month assessment program.

Guition tooling supports three additional workflows that experienced engineers rely on during production:

• Cross-platform online debugging. Because the host software is web-based, the same project opens on Windows, macOS, and Linux machines. Teams debug a live module from any platform without installing duplicate toolchains, and cross-platform testing historically triples the time cost when each operating system needs its own build environment (Espressif Systems, 2025).
• Speech recognition and Home Assistant integration. The host platform bundles voice-command support and smart-home control widgets, so an interface can respond to spoken commands or toggle HA devices directly. One smart-home installer in our 2025 case program controlled twelve circuits from a single panel using voice plus touch.
• Simplified WiFi configuration. Network provisioning flows through a guided screen instead of AT commands hardcoded in firmware, which cut the most common support ticket we saw in 2024 by an estimated 70% during the following year.

How Does Serial Communication Simplify Screen Integration?

The UART Command Model Explained

A serial port screen, sometimes called a USART HMI module, contains its own graphics controller. Your main controller — an STM32, a PLC, or even an Arduino — sends short text instructions over a UART (Universal Asynchronous Receiver-Transmitter) line. An instruction such as a page-switch or value-update command consumes a handful of bytes. The screen handles all rendering internally.

Contrast that with a parallel RGB display, where the host MCU must refresh every pixel continuously. Serial architecture frees your main processor from graphics work entirely. On ESP32-P4 hardware, the RISC-V dual-core MCU running at 360 MHz manages the display stack while your application logic runs undisturbed (Espressif Systems, 2025).

Faster Integration Cycles, Measured

Serial integration shortens the two most expensive project phases: wiring and display debugging. Consider what our integration partners reported in 2025 across 19 tracked projects. Teams moving from parallel RGB panels to the 10.1-inch Serial Port Screen cut their average display-related integration time from 14 working days to 5. The savings came from three wires instead of twenty-plus, and from a command protocol testable with any terminal program.

The table below summarizes the before-and-after data we collected:

These advantages compound at scale. A serial architecture lets one display engineer support many product lines, because the command layer stays consistent across Guition modules from 1.28 to 21.5 inches.

What Makes a 10.1-inch Serial Port Screen Highly Versatile?

One Module, Many Development Environments

Versatility begins with software choice. The Guition visual tool (MicroPython Documentation, 2025). A maker prototyping in MicroPython on Monday can hand the same hardware to a production team writing ESP-IDF C code on Tuesday. No hardware change, no vendor lock-in.

Hardware versatility runs just as deep. The module carries 32 MB of PSRAM, 16 MB of flash, a TF card slot for assets and logs, and exposed IO for sensors and relays. Built-in WiFi and Bluetooth let the screen act as a standalone edge controller, not just a dumb display. That headroom explains why the same part number appears in 3D printers, EV chargers, and medical carts.

Application Scenarios That Prove the Range

Three deployment categories dominate our 2025 order data for this module, and each exploits a different strength.

• EV charging stations. A European charging-network operator used the 10.1-inch Serial Port Screen as its payment and status terminal across 400 pedestal units. The 800×1280 panel displays QR codes large enough to scan from a meter away, while the ESP32-P4 handles TLS communication with the charging backend over WiFi. Their reported field uptime reached 99.2% across the first nine months of rollout.
• Commercial kitchen equipment. A combi-oven maker replaced mechanical timers with the module and built multilingual menus using the built-in UTF-8 support. Kitchen staff changes languages at the touch of a button, and the oven controller communicates over a single UART line rated for the electrically noisy kitchen environment via an RS-485 transceiver stage.
• Home automation hubs. Home Assistant enthusiasts value the module's compatibility with ESPHome-based firmware and its native smart-home control widgets (Home Assistant, 2025). Wall-mounted panels running dashboards for lighting, climate, and security have become one of our fastest-growing segments, driven partly by community project write-ups during 2025.

10.1-inch Serial Port Screen: Better Visibility and User Control

Designing for Glanceable Information

Visibility is about hierarchy, not just brightness. A large canvas allows type sizes that follow accessibility guidance — critical text at 6 mm cap height or larger. On smaller serial screens, designers shrink fonts to fit content, and readability collapses. The 10.1-inch Serial Port Screen gives you room to keep alarm text large while secondary data stays visible at reduced scale.

User control improves when the interface mirrors the machine's logic. With ample screen area, you can surface a persistent status bar, contextual controls, and a help pane on one page. Operators form a mental model faster, and training time drops. One packaging-machine customer reported that new-operator training fell from five days to three after redesigning their interface for the larger panel, based on their 2025 internal training logs.

Feedback That Confirms Every Action

The capacitive touch layer pairs with visual and optional audio confirmation on every press. Users never wonder whether a touch registered. Combined with the module's fast page-switch response — under 150 ms in our bench tests with typical asset loads — the screen feels as responsive as a consumer device. Perceived responsiveness shapes operator trust; sluggish industrial interfaces invite double-taps, which create errors of their own.

Why Is a 10.1-inch Serial Port Screen Ideal for HMI Systems?

Built for the Demands of Human-Machine Interfaces

An HMI (Human-Machine Interface) is the operator's window on a machine. It displays conditions, receives orders, and raises alerts. HMIs need to have reliable, legible, and responsive controls, 24 hours a day. All hardware options for the 10.1-inch Serial Port Screen meet every need: a dual-core MCU that separates rendering from communication, industrial-grade components, and a serial protocol that is reliable and can even work in electrically noisy situations with RS-232/RS-485 line drivers.

This need for capable interfaces is mirrored in the worldwide HMI business. According to Grand View Research (2024), investment in industrial automation and smart factories will continue to fuel development until 2030. Display modules that reduce integration cost while improving interface quality are taking an increasing proportion of such investment.

Standards Alignment That Eases Certification

products built on documented, standards-based communication pass certification reviews faster. Serial protocols used in industrial settings align with long-established electronic-industry standards, including TIA/EIA-232 and TIA/EIA-485 electrical specifications, and integrate cleanly with Modbus-based SCADA systems (Modbus Organization, 2025). When your display speaks a protocol inspectors already understand, documentation reviews move quickly, and field integrators need no vendor-specific training.

How Can a 10.1-inch Serial Port Screen Improve System Efficiency?

Offloading Graphics Work from the Host Controller

Efficiency gains start with workload separation. The ESP32-P4 dedicates its 360 MHz dual-core RISC-V processor, 768 KB of L2 memory, and 32 MB of PSRAM to graphics and connectivity. Your host controller keeps its cycles for control loops and safety logic. In a 2025 CNC controller retrofit we supported, moving the GUI off the motion controller reduced its worst-case loop jitter by 41%, measured with the integrator's own oscilloscope traces before and after the change.

That single-UART simplicity also trims the bill of materials. Fewer wiring points reduce connector failures, which field-service studies consistently rank among the top causes of industrial downtime. Three connections — power, TX, RX — mean three things to inspect instead of twenty.

Remote Updates Cut Maintenance Cost

Field service visits cost money every time a technician rolls a truck. The module supports remote firmware and UI updates over WiFi, so feature fixes and interface polish ship over the air. Our charging-station customer cited earlier pushed four interface updates to all 400 pedestals during 2025 without a single site visit. They estimated the avoided service calls at roughly 12 technician-days saved per update cycle, a figure from their own operations reporting.

Efficiency advantages we track across customer programs include:

• Development velocity. Drag-and-drop UI assembly plus WYSIWYG simulation compresses the design-test-revise loop from days to hours. Teams iterate in front of stakeholders instead of scheduling demos around firmware builds, which our 2025 onboarding cohort credited for their 6.5-hour first-interface benchmark.
• Deployment reliability. Pre-programmed demo firmware means every unit powers up working out of the box. Quality-control data from our production line shows outgoing units pass a 100%10.1-inch Serial Port Screen and touch test before packing, keeping early-life failure reports below 0.3%.
• Lifecycle maintenance. Remote upgrade capability turns after-sales support into a software operation. Distributors report warranty-related display complaints handled by firmware fixes rather than hardware swaps in the majority of 2025 cases.

10.1-inch Serial Port Screen: Flexible Control and Easy Integration

Integration Patterns for Every Team

The number of methods to connect the module to a product indicates flexibility as well. Teams using traditional PLCs will link via RS-232 or RS-485 level changers. Arduino-class projects connect TX/RX directly at logic levels. Wireless-only models bypass the cord altogether, enabling the 10.1-inch Serial Port Screen to connect to the local network via WiFi, accepting instructions over MQTT or HTTP from anywhere on the LAN.

The accessible IO port and TF card slot allow for integration beyond the display function. Sensor readings may be recorded directly on the TF card for subsequent export. When used as a tiny edge controller, simple actuators may be hung from the IO lines of the 10.1-inch Serial Port Screen. This kind of flexibility allows product teams to remove a whole auxiliary controller from their BOM in space-constrained designs.

A Comparison Against the Alternatives

Choosing a display architecture means weighing trade-offs honestly. The comparison below draws on our integration data and published platform capabilities (Espressif Systems, 2025).

The serial module wins where integration speed, wiring simplicity, and built-in connectivity carry weight. Systems needing desktop-class 3D graphics still favor single-board computers, and we say so plainly when customers ask.

Why Choose a 10.1-inch Serial Port Screen for Industrial Systems?

Reliability Engineering for Demanding Environments

Electronics take a pounding in industrial environments. Heat, vibration, and electrical noise batter weak designs. Jingcai Intelligence has a dedicated testing facility and is RoHS-compliant, with quality processes proven by supplier capability evaluations. The baseline is a display surviving commissioning week; our field data shows these modules performing multi-year duty cycles in charging, culinary, and manufacturing operations.

Serial connections are an industrial benefit in themselves. Differential RS-485 signaling is immune to the electrical disturbance that corrupts parallel buses, which is why the standard roots so much factory-floor communication (Modbus Organization, 2025). Add some RS-485 line drivers to the module, and you have a display connection that ignores motor drives and contactors switching nearby.

Why Guition and Jingcai Intelligence Back That Choice

Jingcai Intelligence is a rapidly developing R&D-and-manufacturing firm, specializing in HMI display solutions and USART-hmi display modules, with a product range from 1.28 to 21.5 inches. Guition software is separately designed to eliminate the usual development bottleneck, with powerful drag-and-drop capabilities, cross-platform online debugging, multi-language UTF-8 support, and remote project updates.

Post-sale support. Secondary development interfaces, thorough technical documentation, and rapid engineering assistance are commonplace. The trade terms for worldwide buyers include FOB, CIF, DDU, and DDP. These pledges translate into real results: the 19-project integration dataset mentioned throughout this post was from customers who picked Guition and shared their findings with us.

Conclusion

The 10.1-inch Serial Port Screen is designed into current product designs using a simple but potent approach. The 800x1280 IPS display is as clear as a dashboard. Serial communication is, by design, not by accident, an effective means of reducing wiring and integration labor. Inside the display is the ESP32-P4 core, which offers WiFi, Bluetooth, and plenty of computing headroom. Free, permanent Guition tools make UI creation a drag-and-drop approach measured in hours

The tale is told in real-world deployments: 64% quicker integration, 93% less display code, 31% display power savings, 99.2% field uptime. Whether it’s EV chargers, culinary equipment, medical devices, or home automation hubs, this module class eliminates the display bottleneck on your critical route. Try one on your bench before you commit to your next design cycle.

FAQ

1. Can a 10.1-inch Serial Port Screen run without a separate host controller?

Yes. Because the module is built on the ESP32-P4 dual-core MCU with WiFi and Bluetooth, it can operate as a standalone controller. Many smart-home projects run Home Assistant dashboards directly on the module with no external MCU at all. Applications that involve machine control loops usually keep a dedicated host and use the screen as the interface layer.

2. Which development environments does the JC8012P4A1C support?

The module supports Arduino IDE, ESP-IDF, MicroPython, and the Guition visual development platform. Beginners typically prototype in the Guition drag-and-drop editor, while production teams often migrate to ESP-IDF for tighter control. All four environments work on the same hardware with no modification.

3. How does serial communication compare to USB or parallel interfaces for displays?

Serial UART links need only TX, RX, and ground, tolerate long cable runs with RS-232/RS-485 drivers, and use a simple text protocol any controller can speak. Parallel interfaces move more raw pixel data but demand dozens of signal lines and continuous refresh from the host. USB suits computer peripherals more than embedded machine panels.

4. Is the Guition UI development software really free forever?

Yes. Guition provides free and permanent host-computer UI development through its web-based platform, including the drag-and-drop editor, WYSIWYG simulation, speech-recognition integration, and Home Assistant control widgets. There are no per-seat licenses or subscription tiers for designing and flashing interfaces to Guition modules.

5. What touch options are available on this 10.1-inch module?

The capacitive option supports multi-touch gestures, requires no recalibration, and includes a dedicated touch-control circuit on the module. Non-touch versions suit display-only applications such as status dashboards and signage.

Start Your Next Display Project With Expert Support

Tell us about your application and get a tailored evaluation plan. Guition engineers will review your interface requirements and recommend the right configuration of the 10.1-inch Serial Port Screen for your product, including the touch option, cable harness, and firmware starting point. Email david@guition.com for samples, a quote from a proven 10.1-inch Serial Port Screen supplier. Reach out today — your first working prototype is closer than you think.
